Wrapping Headings and Setting Column Widths on S-Drive Lightning Component

On the S-Drive Lightning component System Administrators can set column headings to wrap to a second line and can set a pixel width for fields.

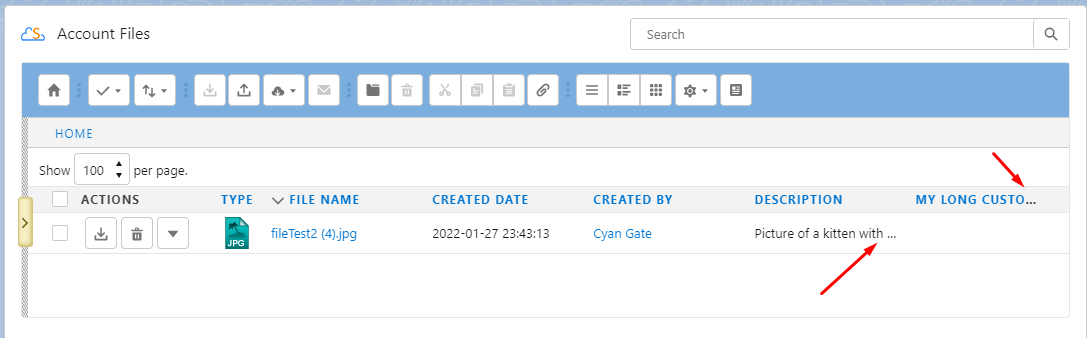

Here, there is no wrapping and the columns are set to a default width.

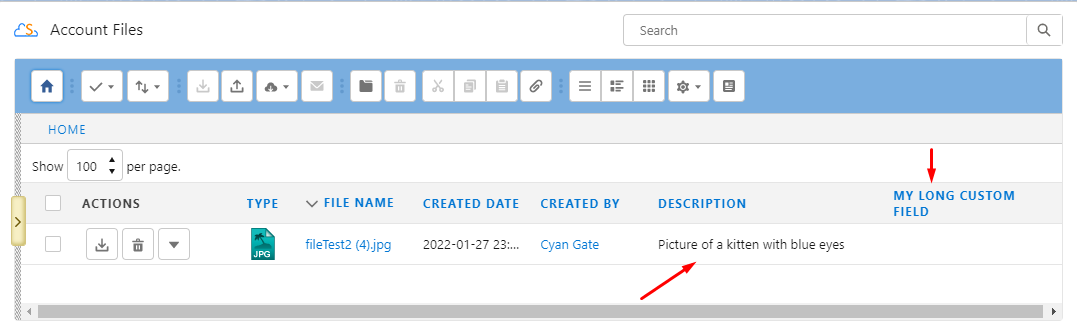

Here' the column heading wraps and the Description field is wider

These settings are configured with Custom Metadata Settings.

• Go to Setup-> Custom Metadata Types

• The first time using this, you need to add fields to the page layout.

  • Click on SDriveColumnConfiguration

  • Scroll down to Page Layouts and click Edit next to the page layout

  • Add the fields Location, Location Owner Id, and Code to the page layout

  • Click Save

  • Go back to Setup->Custom Metadata Types

• Click “Manage” next to SDriveColumnConfiguration

• You can clone the default record. Give your record a new label and name.

• For Location, choose User, Profile, or Default

  • a User setting overrides a Profile setting. If neither is found, a Default setting will be used if there is one

• For Location Owner Id, put the record id of the profile or user this setting should apply to

• In the Code field, edit the code to set header wrapping and field width in pixels for whichever fields you want

• The format of the code is as follows:


  CODE

  [
  {
  "fileObjectName":"cg__AccountFile__c",
  "fieldList":[
  {
  "fieldName":"cg__File_Name__c",
  "wrapEnabled": true,
  "columnWidth": 100
  },
  {
  "fieldName":"cg__Description__c",
  "wrapEnabled": true,
  "columnWidth": 200
  },
  {
  "fieldName":"CreatedDate",
  "wrapEnabled": true,
  "columnWidth": 100
  },
  {
  "fieldName":"LastModifiedDate",
  "wrapEnabled": true,
  "columnWidth": 100
  },
  {
  "fieldName":"My_Custom_Field_with_a_Long_Name__c",
  "wrapEnabled": true,
  "columnWidth": 100
  },
  {
  "fieldName":"cg__Tags__c",
  "wrapEnabled": true,
  "columnWidth": 200
  }
  ]
  }
  ]

It may be helpful to use a JSON validator to check your JSON code for formatting errors.

Column width settings do not affect which columns are displayed

Which columns to display is taken from S-Drive Configuration->Customization Settings or from Custom Setting->View Setting, which overrides it.

The custom metadata column width/header wrap settings described here only determine how to display a column, not which columns to display.
